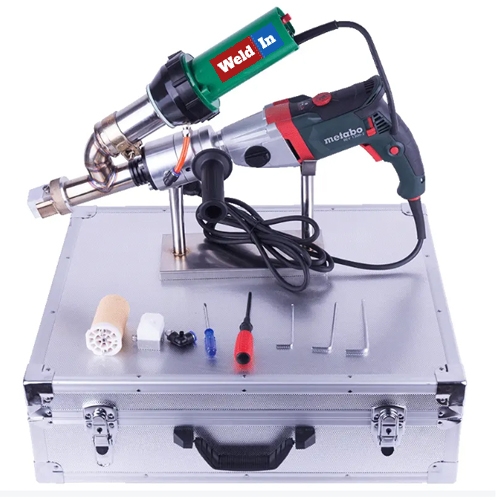

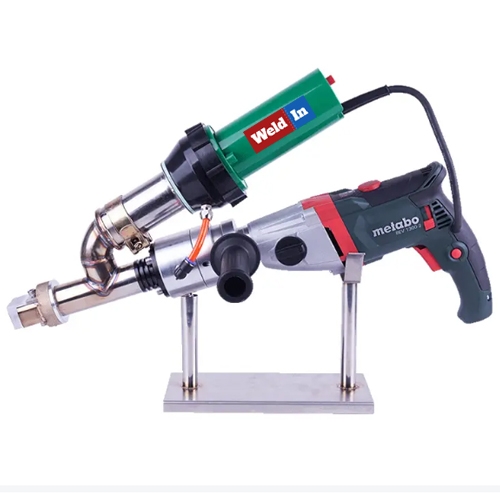

Hand Extruder / Extrusion Welder Single heating WIN 610E
Extrusion Welder Single heating WIN 610E
No electronic controls Simple heating system design.
Hardened screw and barrel promotes smooth flow rates with minimal load on the drive motor.
Lightweight… High output… Affordable
Extrusion system
Adopting the exclusive research and development of the feed extrusion system, low noise, fast heat dissipation, smooth extrusion and longer service life.
Heating system
Using Lesite brand 3400W hot air heating system, it is safe and reliable to work for a long time.

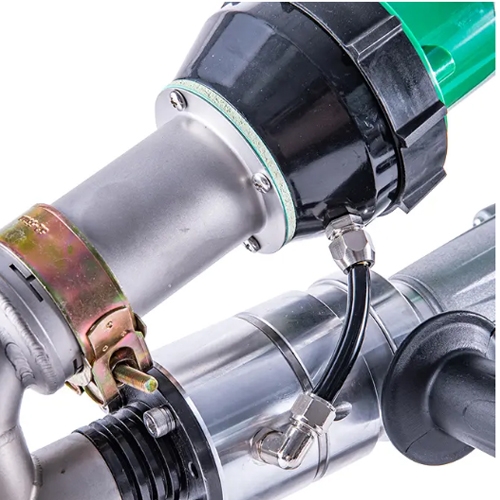

360 degree Rotating Welding Head
The 360-degree rotating hot air welding nozzle can be applied to different needs.
Drive motor
Using German original METABO motor as the driving motor.
Model WIN 610E
Rated Voltage 230V
Frequency 50/60HZ
Extruding Motor Power 1300W
Hot Air Power 3400W
Air Temperature 20-620℃ Adjustable
Extruding Volume 2.0-3.0kg/h
Welding Rod Diameter Φ3.0-4.0mm
Driving Motor METABO
Body weight 6.3kg
Warranty 1 year
