Pipe Band Saw TPS630 | RIYANG MANUFACTURE
Pipe band saw is desighed as workshop machine to make angular cut, ranges from 0° to 67.5°. Usually it is a necessary equipment to work together with fitting fabrication machine. Due to the easy preparation and simple cutting process, operator could handle it easily.
Pipe Band Saw TPS630 | RIYANG MANUFACTURE

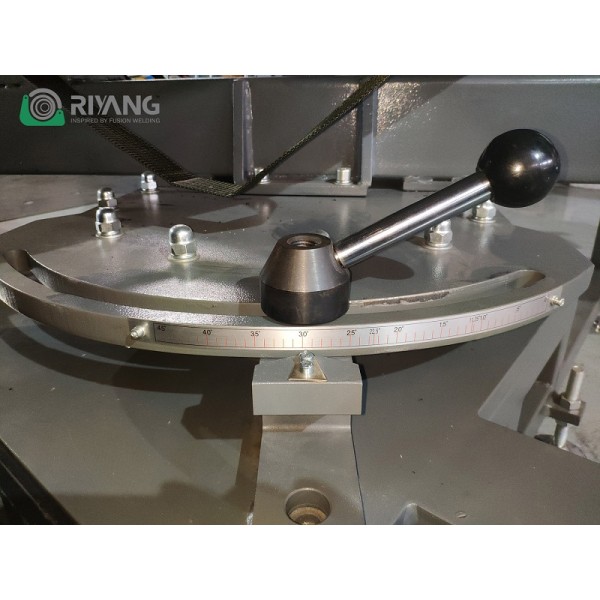

TPS630 is a hydraulic workshop band saw for thermoplastic material(HDPE, PP, PVDF, PPR, PVC) pipes from 90mm to 630mm diameter. Thanks to the slewing bearings, the machine body can be easily moved manually. And the cutting angle is adjustable with precision from 0°to 67.5°. It could work ideally with an ATLA fittings fabrication machine for various kinds of fittings.
The equipment is provided with a mobile control panel, which gives the chance to the operator work at a safe distance from the cutting area. By the control panel, the operator can control the automatic movement of the saw (up/down) and also regulate the cutting speed.
The pipe to be cut is held by heavy-duty tie-down straps. Clamping the pipes in this manual way could avoid the risk of pipe loosing during the cutting progress.
Product Details
CUTTING RANGE OD 90MM – 630MM
MAX. CUTTING ANGLE 67.5º
POWER SUPPLY 380VAC, 3 PHASE, 50/60HZ
MATERIALS HDPE – PP – PPR – PVDF – PVC
RATED POWER 3.7KW
CUTTING ANGLE ERROR ≤1°
LINE SPEED 0 – 255M/MIN
FEED SPEED ADJUSTABLE
SPACE OCCUPATION 560CM * 560CM
NET WEIGHT 1600KGS
Standard Composition
Featured by
– Pipe Support Stand
– Auxiliary bench for cutting tees
– Pressure Bar
Options
– Automatic Angle Positioning
