Pipe Band Saw TPS400 | RIYANG MANUFACTURE
Pipe band saw is desighed as workshop machine to make angular cut, ranges from 0° to 67.5°. Usually it is a necessary equipment to work together with fitting fabrication machine. Due to the easy preparation and simple cutting process, operator could handle it easily.
Pipe Band Saw TPS400 | RIYANG MANUFACTURE

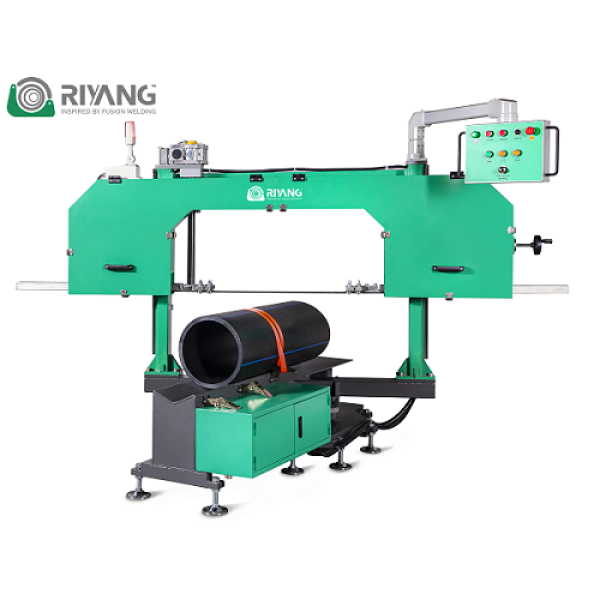

TPS400 is a hydraulic workshop band saw for thermoplastic material(HDPE, PP, PVDF, PPR, PVC) pipes from 90mm – 400mm diameter. Thanks to the slewing bearings, the machine body can be easily moved manually. And the cutting angle is adjustable with precision from 0°to 67.5°. It could work ideally with an ATLA fittings fabrication machine for various kinds of fittings.

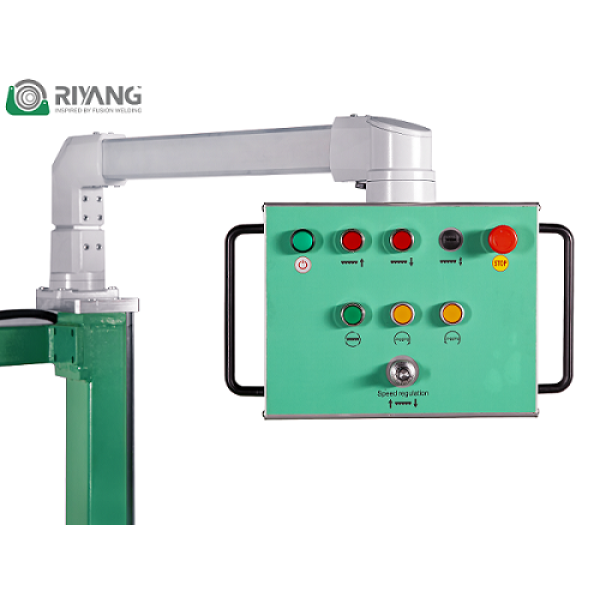

The equipment is provided with a mobile control panel, which gives the chance to the operator to work at a safe distance from the cutting area. By the control panel, the operator can control the automatic movement of the saw (up/down) and also regulate the cutting speed.
The pipe to be cut is held by heavy-duty tie-down straps. Clamping the pipes in this manual way could avoid the risk of pipe loosing during the cutting progress.
Product Details
CUTTING RANGE OD 90MM – 400MM
MAX. CUTTING ANGLE 67.5º
POWER SUPPLY 380VAC, 3 PHASE, 50/60HZ
MATERIALS HDPE – PP – PPR – PVDF – PVC
RATED POWER 2.5KW
CUTTING ANGLE ERROR ≤1°
LINE SPEED 0 – 255M/MIN
FEED SPEED ADJUSTABLE
SPACE OCCUPATION 560CM * 560CM
NET WEIGHT 880KGS
Standard Composition
Featured by

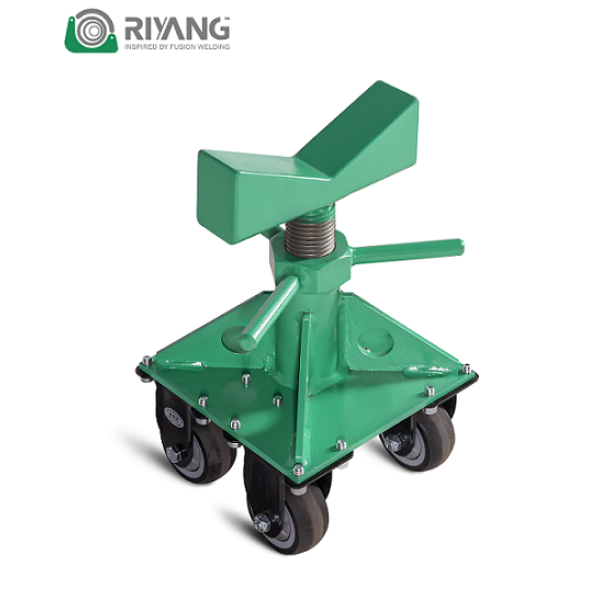

– Pipe Support Stand
– Auxiliary bench for cutting tees
– Pressure Bar
Options
– Automatic Angle Positioning
