PRODUCTS/BUTT FUSION MACHINES

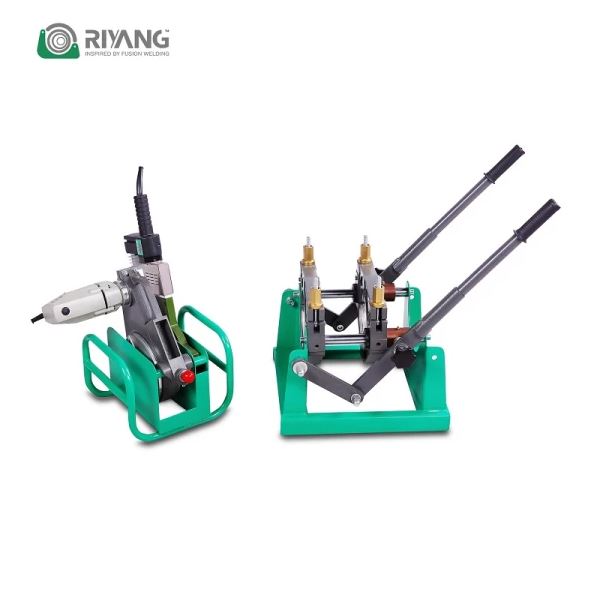

Manual Butt Fusion Machine V160M 50MM-160MM (2″ IPS – 6″ IPS)
The manually operated butt fusion machine is featured by easy use, lightweight and quick operation. This compact fusion machine could enable only one operator to do the precise welding at the jobsite. It gives more flexibility to work not only on the ground, but also in the ditch.
Manual Butt Fusion Machine V160M 50MM-160MM (2″ IPS – 6″ IPS)
Riyang V series M is an on-site manual butt fusion welding machine.
It is used to butt weld pipe and fittings such as elbow, tees, wye, and flange necks without any additional equipment.
It is suitable for welding plastic pipes and fittings made of HDPE, PP, PVDF, and other thermoplastics material.
Product Details
WELDING RANGE O.D. 50MM – 160MM
POWER SUPPLY 1.8KW
POWER SUPPLY 220V±10%, 50/60HZ
TEMPERATURE RANGE MAX. 300ºC
GROSS WEIGHT 59KGS
PACKING DIMENSION 450*480*420 MM, 380*420*570 MM
PACKING MATERIAL PLYWOOD BOX
– A heating plate with digital display installed on the handle.
– Brass fasten screws make the compatible life much longer.

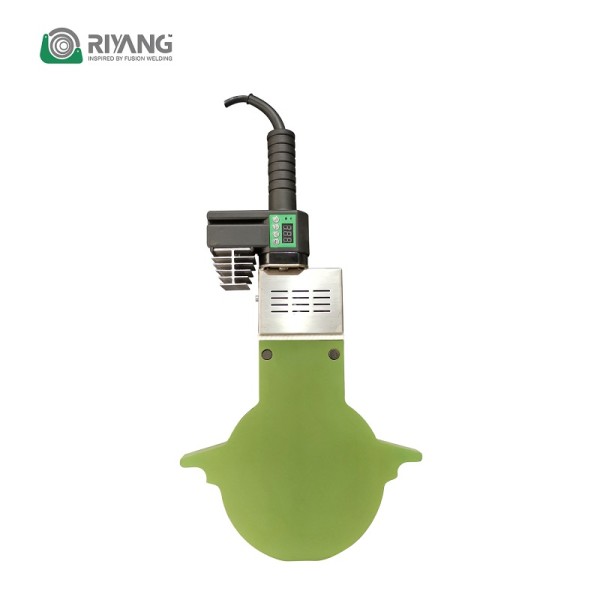

– A Teflon coated heating plate with a separate temperature control system;

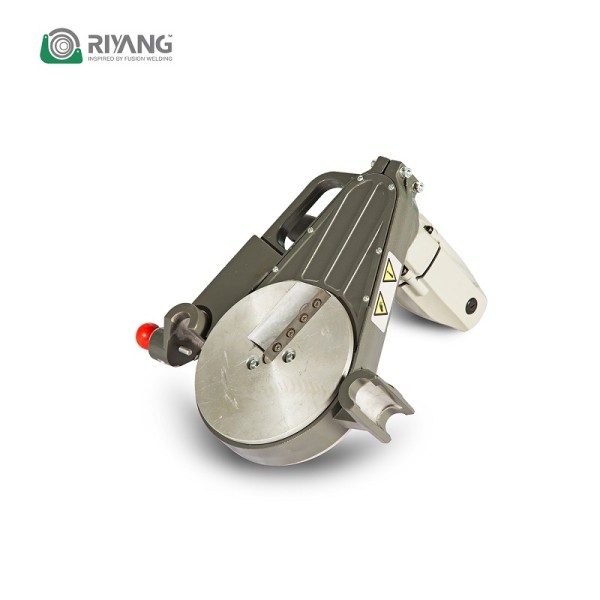

– A trimmer with safety switch;
– Support for milling cutter and heating plate;
– Premium tooling box
