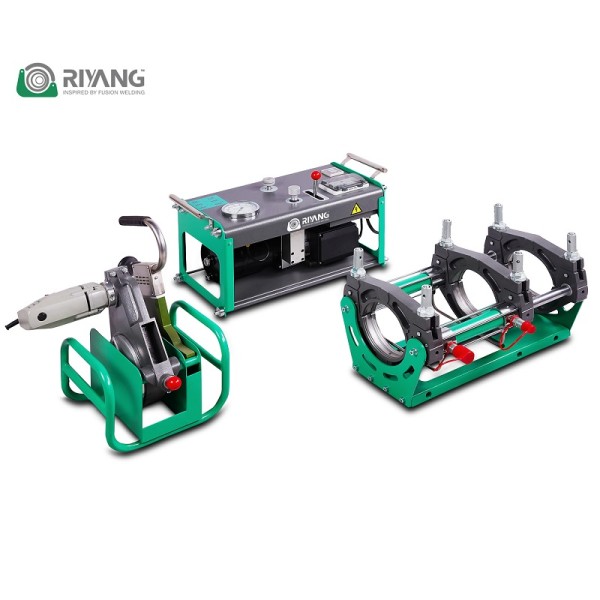

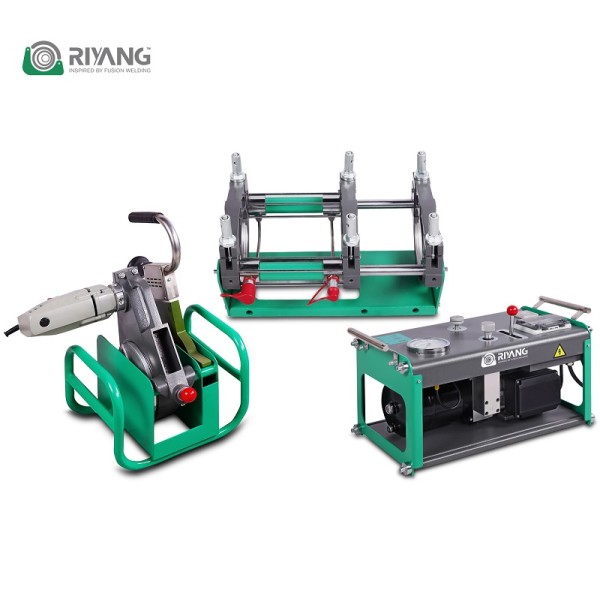

Hydraulic Butt Fusion Machine V160 BEE 50MM-160MM (2″ IPS -6″ IPS)
The hydraulically operated butt fusion machine is featured by robust, compact and rugged reliability. The hydraulic power station gives sufficient pressure to butt fusing pipes and fittings with a variety of pressure ratings. And Riyang hydraulic butt fusion machine is compatible with Riyang data logger, which records and documents the key parameters of the fusion process.
Hydraulic Butt Fusion Machine V160 BEE 50MM-160MM (2″ IPS -6″ IPS)
Product Details
WELDING RANGE O.D. 50MM – 160MM
PISTON AREA 6.27 CM²
POWER SUPPLY 220V±10%, 50/60HZ
TEMPERATURE RANGE MAX. 320ºC
HEATER POWER 1.0KW
PACKING DIMENSION 820*400*380 MM, 440*400*520 MM,650*340*380 MM
TRIMMER POWER 0.75KW
PUMP POWER 0.75KW
WORKING PRESSURE RANGE 0 – 80 BAR
GROSS WEIGHT 105KGS

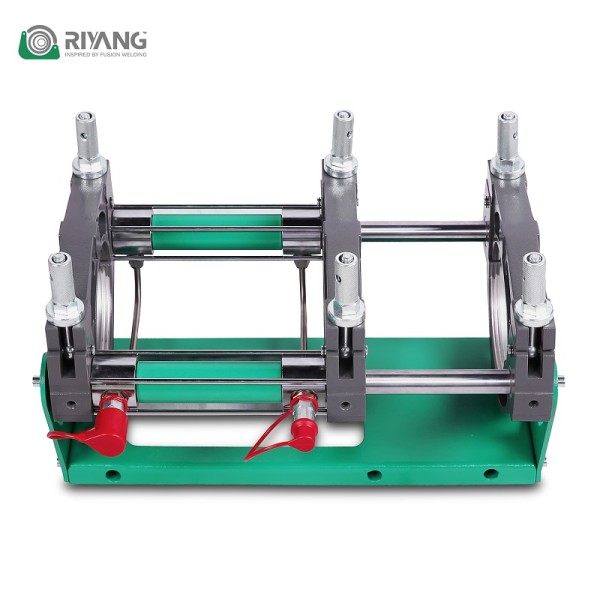

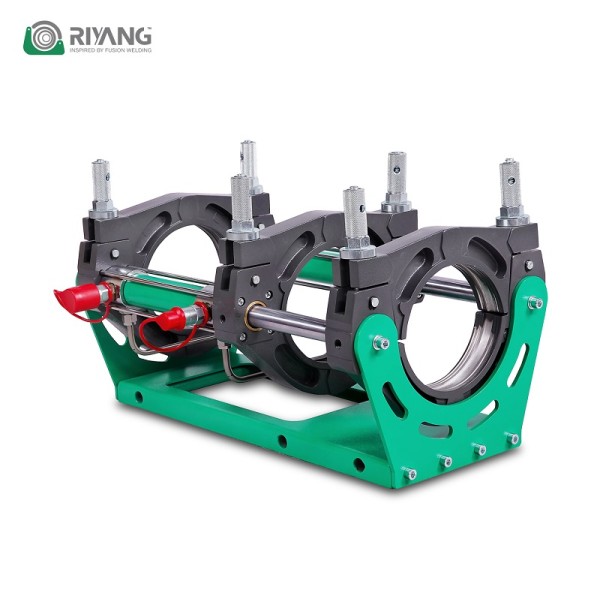

Basic Frame
Featured by
– Oil seal kit, origins from Germany, make sure that the pressure performance stays in a more stable way.
– 4sets quick coupling helps the operator to prepare the machine better before and after welding, and we use STUCCHI which from Italy ensures no hydraulic oil leakages when unplug or plug in.
– Using an integral shaft (top chromate treatment) instead of the assembled shaft, ensure the chassis strength to avoid possible frame twist or deform when dragging the pipe with extreme parameters.
Heating Plate
Featured by
We use Dupont from the USA for coating the heating plate, which is the best in the industry. It’s many stickers on an aluminum plate, more non-sticky to plastic pipes surface. The temperature deviation of different points on the heating plate is 2-3 degrees (small size machine) and 5-6 degrees (big size machine).
Trimmer
Featured by
Safety Switch, which guarantees the operators’ security, even with power on, the trimmer will not be running if operators do not press the button.
Support
Featured by
Ergonomic design
Hydraulic Power Station
Featured by
Solid relays have a bigger load capacity and working in a more stable situation, which has a much longer life.
The circuit breaker works with an electricity leakage protection switch. Including the earth wires, there’re 2 elements to activate the protection when electricity is leaking.
Non-fan motor (small size machines), waterproof, sand-proof, and dust-proof at a higher level. The motor provides sufficient/full power to provide support for hydraulic power.
