Fitting Fabrication Machine ATLA400 90MM – 400MM

It is the machine used to fabricate fittings by jointing pipe segments, like elbow, tee, cross and wye. Powered by PLC automatic system, the welding process fully controlled by computer, thus reducing the risk of error occurred by operator.

Fitting Fabrication Machine ATLA400 90MM - 400MM

Fitting Fabrication Machine ATLA400 90MM - 400MM

Fitting Fabrication Machine ATLA400 90MM - 400MM

Fitting Fabrication Machine ATLA400 90MM - 400MM

Fitting Fabrication Machine ATLA400 90MM – 400MM

ATLA fitting fabrication machine is designed to fabricate fittings like elbows, tees, and crosses up to 400mm, wyes up to 315mm.

With the help of jaws, it could make different fittings of various sizes.

The ATLA400 welding machine could weld plastic materials like HDPE, PP, PVDF.



Product Details

ELBOWS OD 90MM – 400MM ( 0º – 90º)
TEES & CROSSES OD 90MM – 400MM
WYES ( *OPTION ) OD 90MM – 315MM ( 45º – 60º )
MATERIALS HDPE HDPE – PP – PPR – PVDF – PVC
POWER SUPPLY 12.3KW
PISTON AREA 10.9CM2
POWER SUPPLY 380VAC, 3 PHASE, 50/60HZ
TOTAL PACKED IN 4 PLYWOOD CASES
TOTAL WEIGHT 1744KG
MACHINE DIMENSION 1350*1350*1370MM

Standard Composition
Featured by

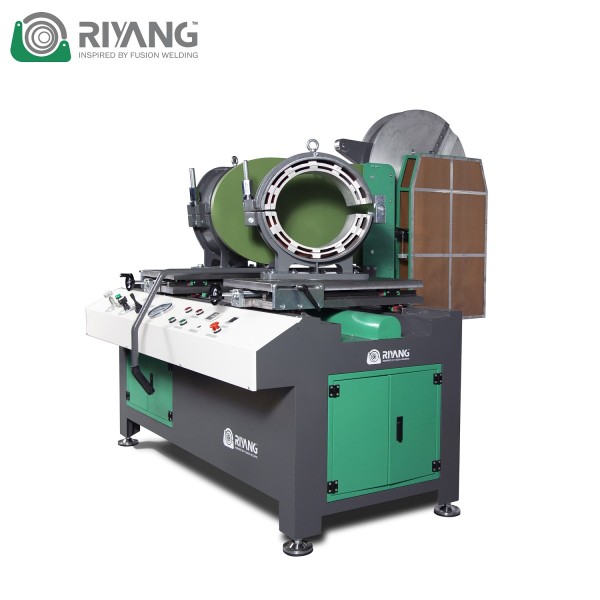

– Basic machine completes with two carriages, both driven by the hydraulic system.

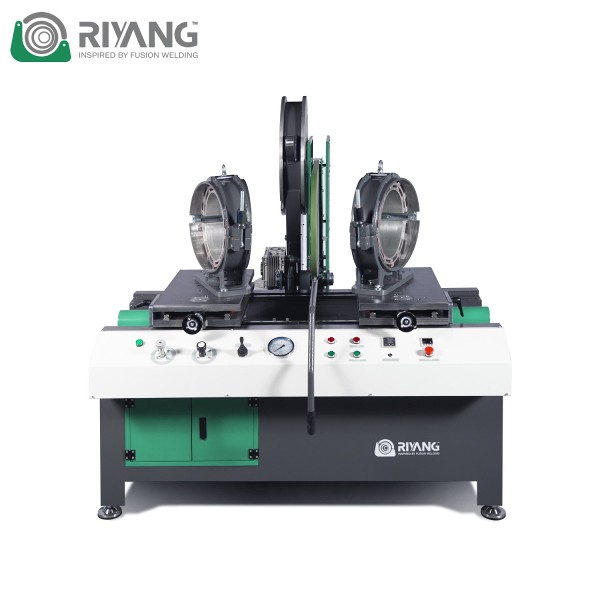

– Manual hydraulic control panel with all functional keys and buttons plane layout.
– Electrical trimmer with gear and safety microswitch.
– PTFE coated heating plate with a steel shield.

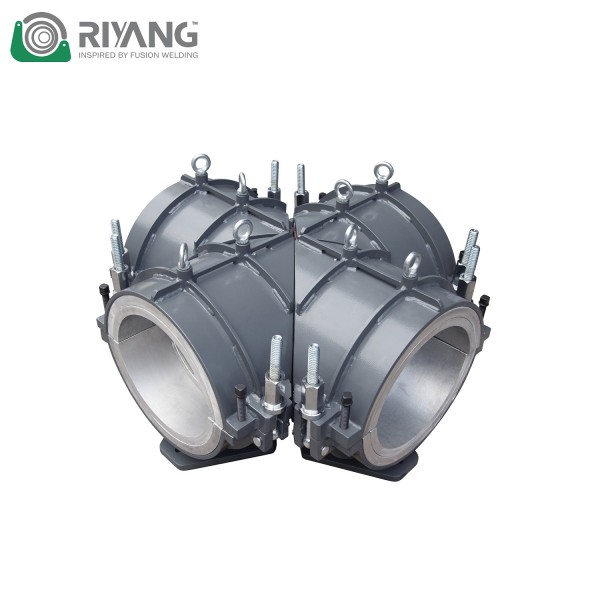

– Left and right elbow clamps φ315mm with a full set of aluminum inserts from φ90mm to φ280mm
– Left and right 90°Tees and Crosses clamps φ315mm with a full set of aluminum inserts from φ90mm to φ280mm

Options

– 45°and 60° Wyes clamps φ315mm with full set of aluminum inserts from φ90mm to φ280mm.
– Stub end device
– Data logger
