Fitting Fabrication Machine ATLA315 90MM – 315MM

ATLA fitting fabrication machine is designed to fabricate fittings like elbows, tees crosses, and wyes up to 315mm.

With the help of jaws, it could make different fittings of various sizes.

The ATLA315 welding machine could weld plastic materials like HDPE, PP, PVDF.



Product Details

ELBOWS OD 90MM – 315MM ( 0º – 90º )
TEES & CROSSES OD 90MM – 315MM
WYES ( *OPTION ) OD 90MM – 315MM ( 45º – 60º )
MATERIALS HDPE – PP – PPR – PVDF – PVC
RATED POWER 5.25KW
PISTON AREA 20.02 CM2
POWER SUPPLY 380VAC, 3 PHASE, 50/60HZ
TOTAL ABSOREBED POWER 7.5KW
TOTAL WEIGHT (N.W./G.W.) 775KG / 942KG
MACHINE DIMENSION 1350*1350*1370MM

Standard Composition
Featured by

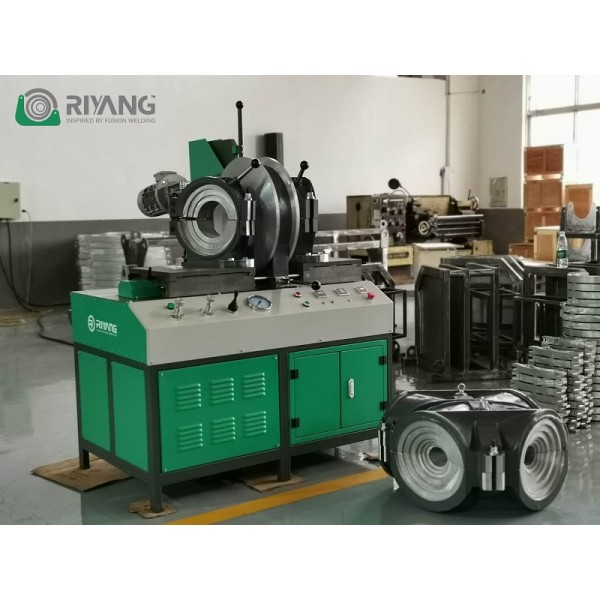

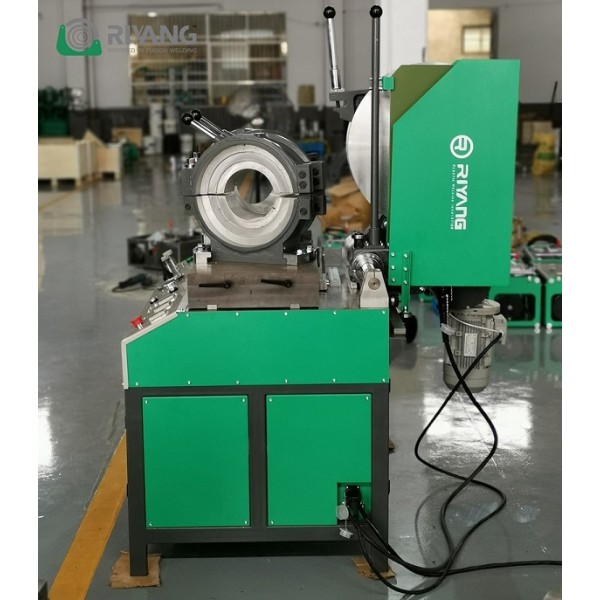

– Basic machine completes with two carriages, both driven by the hydraulic system.
– Manual hydraulic control panel with all functional keys and buttons plane layout.
– Electrical trimmer with gear and safety microswitch.
– PTFE coated heating plate with a steel shield.

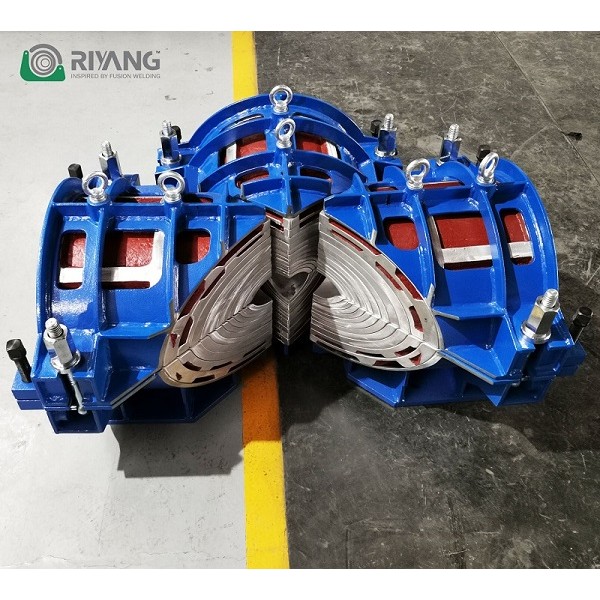

– Left and right elbow clamps φ315mm with a full set of aluminum inserts from φ90mm to φ280mm
– Left and right 90°Tees and Crosses clamps φ315mm with a full set of aluminum inserts from φ90mm to φ280mm

Options

– 45°and 60° Wyes clamps φ315mm with full set of aluminum inserts from φ90mm to φ280mm.
– Stub end device
– Data logger
