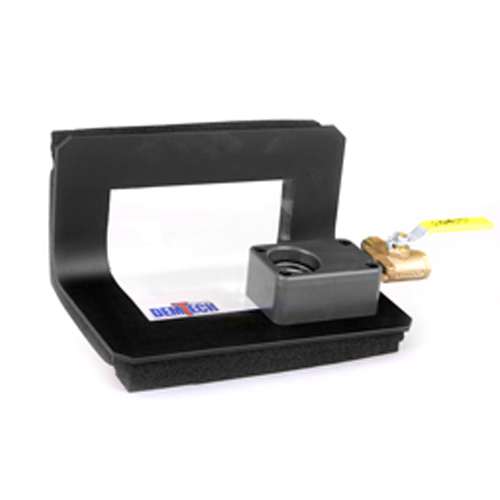

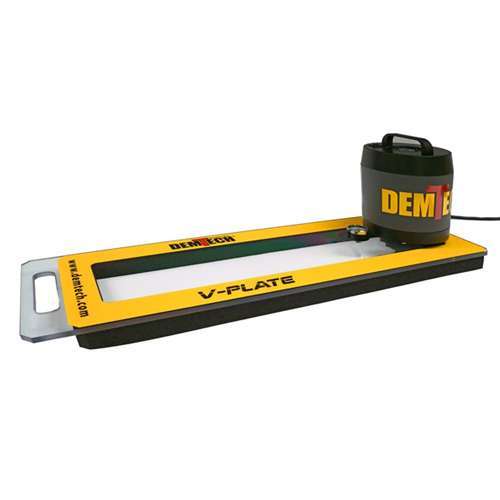

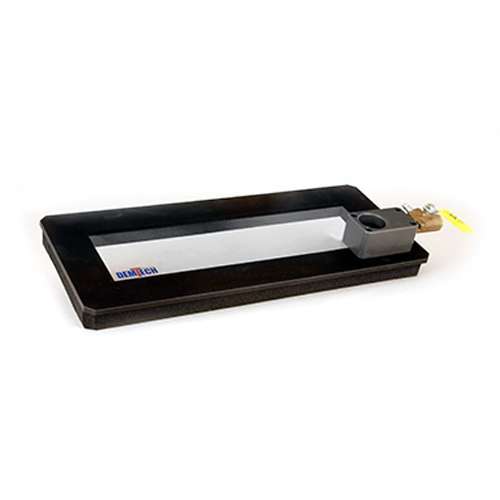

V-Plate Testing System (VP-180SC-24HVC – 24″ Plate)

Vacuum testing of welded seams that is non-destructive. For more information on possible sizes and shapes,

Features of the V-Plate

• Lightweight. It’s simple to transition from one test to the next with little effort.
• Flexible. Initial vacuum seal is simple to create over uneven regions and creases.
• Keep a low profile. Ensures that the liner does not pull up into the chamber.
• Economical. Replacement sight plates with pre-attached foam gaskets are available at a low cost.
• Versatile. The V-Plate can be used with either a vacuum pump or an air compressor, and it can be made in almost any size or shape to suit your testing needs.
